Equipped with Automatic Bundle Loading Device

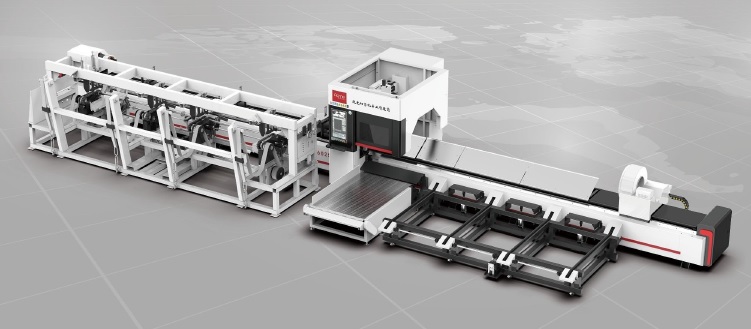

GH Series Tube Lasers
Suitable for cutting long and thin work pieces used in the Elevator Industry, Transport Industry, Mining Industry and the Electrical Industry.
Available Models:
6 Meter Tube Lasers: LT-6012GH / LT-6025GH
9 Meter Tube Lasers: LT-9012GH / LT-9025GH
Technical Parameters
Model
GH Tube Laser
Chuck Sizes
120mm / 250mm
Tube Cutting Length
6000mm - 9300mm
Laser Power
1,000W -20,000W
Max. Tube Weight
120kg / 350kg
X / Y / Z-Axis Travelling
800mm - 940mm / 7090mm - 9300mm / 250mm - 450mm
Tailing Wast Length
≥60mm
X Y Axis Positioning Accuracy
±0.05mm/m
X Y Axis Repeat Positioning Accuracy
±0.03mm/m
Max. Acceleration
1.5G
Max. Rotation Speed
60r/min - 200r/min
Max. Travelling Speed
92m/min
Dimension
19538*2795*2406mm
ADVANTAGES OF ACME LASER CUTTING MACHINE
OSPRI Autofocus Laser Cutting Head
Maintains the same cutting height on metal pipes and ensures high-quality cuts with capacitive sensors in the head. The software automatically adjusts the focusing lens to realize automatic drilling and cutting of different pipe.
Three-chuck Real Zero Tailing Cutting Technology
Maximum load-bearing capacity of single tube, ultra-long tube cutting, and real zero tailing wast Improve material utilization and save costs.
Three Chuck Zero Tail Laser Pipe Cutting Machine
Three Chuck Zero Tail Laser Pipe Cutting Machine
Application industry
High Efficiency Tube Laser with up to 20Kw of Power.
Suitable for use in the Elevator Industry, Transport Industry, Mining Industry and the Electrical Industry.
Cutting Samples
Cutting Work for different tube shapes and material
