Bevel Cutting Machine & Servo Floating Support

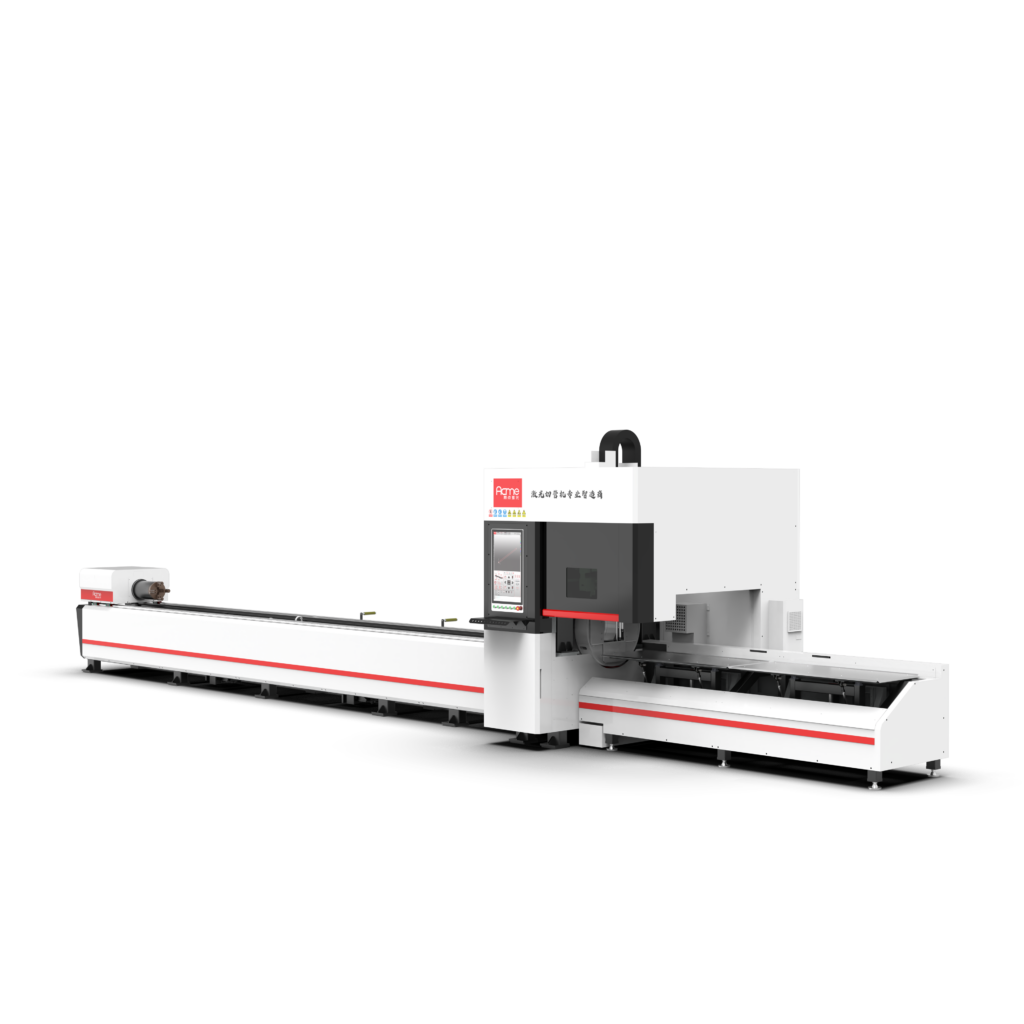

EK Series Tube Laser with Bevel Cutting
Suitable for use in the Elevator Industry, Transport Industry, Mining Industry and the Electrical Industry.
Available Models:
6 Meter Tube Lasers: LT-6012EK / LT-6017EK / LT-6025EK / LT-6035EK
9 Meter Tube Lasers: LT-9012EK/ LT-9017EK / LT-9025EK / LT-9035EK
12 Meter Tube Lasers: LT-12012EK / LT-12017EK / LT-12025EK / LT-12035EK
Technical Parameters
Model
EK Tube Laser
Chuck Sizes
120mm / 170mm / 250mm / 350mm
Tube Cutting Length
6300M - 12300mm
Laser Power
1000-20000W
Max. Tube Weight
120kg / 240kg / 350kg / 800kg
X / Y / Z-Axis Travelling
760mm / 7350-7580mm / 250-400mm
Tailing Wast Length
≥65mm
X Y Axis Positioning Accuracy
±0.05mm/m
X Y Axis Repeat Positioning Accuracy
±0.03mm/m
Max. Acceleration
1.5G
Max. Rotation Speed
65r/min
Max. Feeding Speed
92m/min
Dimension
20617*5950*2427mm
ADVANTAGES OF ACME LASER CUTTING MACHINE
OSPRI Autofocus Laser Cutting Head
Maintains the same cutting height on metal pipes and ensures high-quality cuts with capacitive sensors in the head. The software automatically adjusts the focusing lens to realize automatic drilling and cutting of different pipe.
Servo Support
It is suitable for big and small pipes, self-centering for various pipes, strong support and load-bearing, a single support for conventional pipe loading can reach 120Kg; a single support for heavy pipe loading can reach 330Kg
Standard Type Automatic Loading Device
Intelligent Tube Distribution, loading device is seamless connected with the pipe cutting machine.
It only takes 15 seconds to per tube and the maximum weight of the whole machine can reach 4500kg.
Bevel Cutting Machine & Servo Floating Support
Bevel Cutting Machine & Servo Floating Support
Application industry
High Efficiency Tube Laser with up to 20Kw of Power.
Suitable for use in the Elevator Industry, Transport Industry, Mining Industry and the Electrical Industry.
Cutting Samples
Cutting Work for different tube shapes and material
