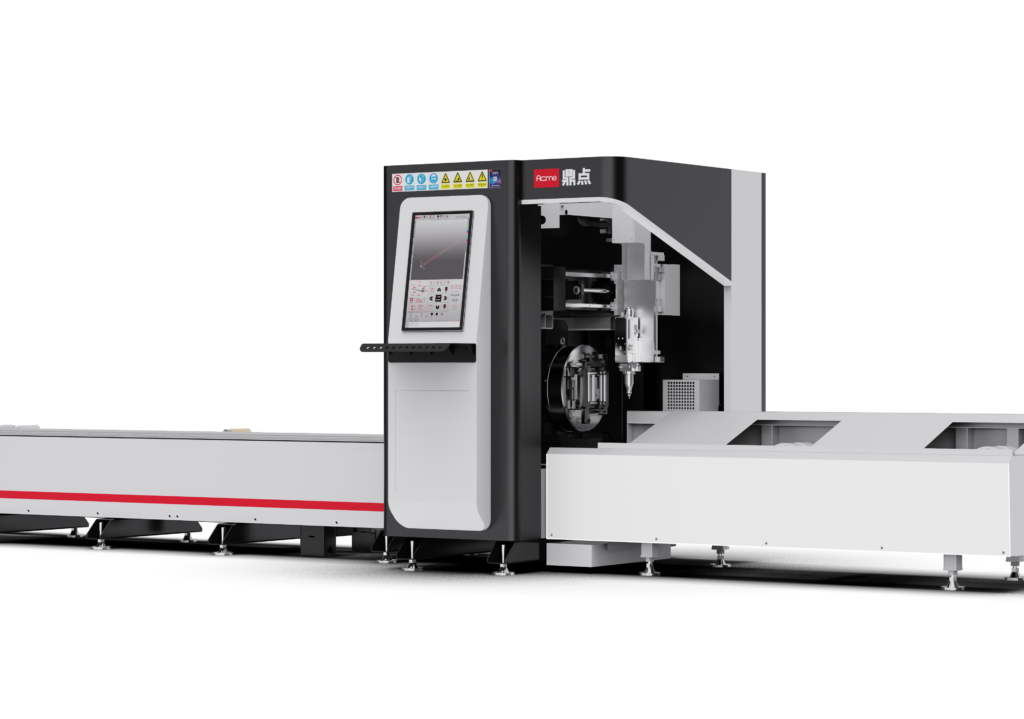

THE Model A Tube Laser IS PERFECT FOR Small Tube Processing
Product Advantages
Efficient Cutting + Fine Processing;
Maximum 200 rpm Rotation Speed
Cutting Diameter 10-120mm;
One set tops N sets, more efficient, more economical, and more efficient
Full stroke smart chuck
Eight-cylinder design. Stronger performance
We have Swiss Hexagon three-coordinate measuring machine, American Haas five-axis linkage machining
Platform, Japan Mazak, Taiwan Yingyuan vertical machining center, realize independent production of chucks
Cutting System Performance Advantage
Automatic Adjustment of Clamping Force / Automatic Centering of Clamping / No Manual Intervention
Real-time Collection of Z-axis Information
Real-time Compensation
For round pipe, square pipe, I-beam, channel steel, angle steel, oval pipe, waist pipe, polygon Pipes, etc. can also be automatically centered for these special-shaped pipes
Free switching between workpiece mode and floating mode
Fully automatic lifting according to the position of the chuck.
Faster and more perfect cuts at pipe corners by tuning settings.
Z-axis integrated cutting with control solves the problem that corners cannot be cut well.
Ensure a reasonable lifting height and follow-up time of the Z-axis to achieve more efficient processing.
Smart Typesetting
- One-key Intelligent Typesetting, Intelligent Drawing Recognition
- Automatically Judge Drawing Errors And Efficiently Modify Wrong Drawings
- Automatic Adjustment Of Pipe Direction, Multiple Automatic Edge Sharing And Other Functions
- One-Click Generation Of Processing Reports
- Automatic Calculation Of Processing Time And Processing Quantity
- Automatic Calculation Of Cutting Length, Perforation Times, Etc.
- Automatic Statistics Of Material Utilization
Small Tail Design
Automatic Adjustment of Clamping Force / Automatic Centering of Clamping / No Manual Intervention
Integrated Electrical Cabinet
The electrical cabinet, laser and the machine are integrated to reduce the floor space/convenient installation and maintenance/free air-conditioning room
Improve space utilization and reduce operating costs
Free Customization
LT-6012A is specially aimed at the pain point of small tube laser tube cutting industry; stable and efficient, cost reduction and production increase, simple and intelligent; compact design, reasonable layout; the best choice for small tube laser tube cutting industry; optional 170 chuck; optional Feeding machine (the most stable feeding machine);
Wide Clamping Range
It can clamp any metal pipe within 10-120mm diameter.
High Speed Cutting
Common Edge Cutting
Intersecting line cutting
One-Click Alignment Of Tube
Technical Parameters
Model
LT-6012A
Pipe Size
6000mm
Tube Cutting Length
6300mm
Laser Power
≤3000W
Max. Tube Weight
180kg
X / Y / Z-Axis Travelling
7400mm / 380mm / 130mm
Tailing Wast Length
≥65mm
X Y Axis Positioning Accuracy
±0.05mm/m
X Y Axis Repeat Positioning Accuracy
±0.03mm/m
Max. Acceleration
1.5G
Max. Rotation Speed
200r/min
Max. Feeding Speed
92m/min
Dimensions
10868*3334*2400mm
Application industry
Perfect for laser cutting small tubes for use in fencing applications as well as steel furniture making.
Cutting Samples
Cutting Work for different tube shapes and material, Semi-automatic Laser Pipe Cutting Machine
