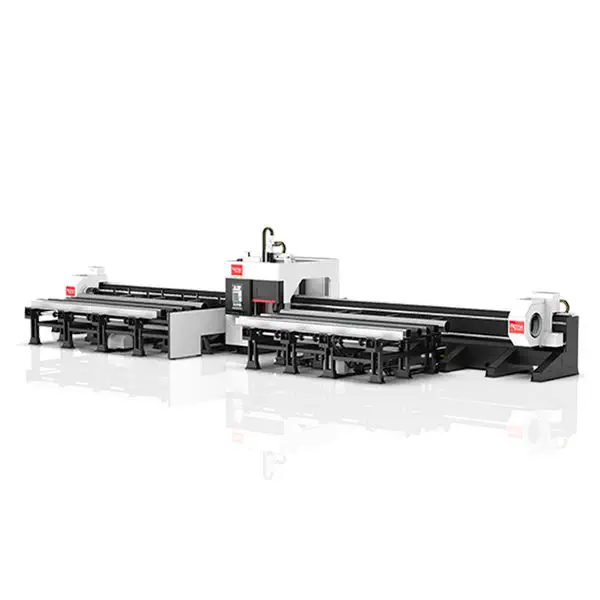

Up to 20,000 Watts Laser Pipe Cutting Machine
TKA Series heavy duty tube laser cutting machine.
Suitable for new energy, construction machinery, construction steel, lift (I-Beam), steel structure and other heavy industries.
Available Models:
6 Meter Tube Lasers: LT-6038TA / LT-6045TA / LT-6050TA / LT-9060TA
9 Meter Tube Lasers: LT-9038TKA / LT-9045TKA / LT-9050TKA / LT-9060TKA
12 Meter Tube Lasers: LT-12038TKA / LT-12045TKA / LT-12050TKA / LT-12060TKA
Technical Parameters
Model
TKA Model Tube Laser
Chuck Sizes
380mm / 520mm / 620mm
Tube Cutting Length
6500mm - 12500mm
Laser Power
6,000 - 20,000W
Max. Tube Weight
1200kg - 1600kg
X / Y / Z-Axis Travelling
1000mm / 7250mm - 13250mm / 600mm
Tailing Wast Length
≥0mm
X Y Axis Positioning Accuracy
±0.05mm/m
X Y Axis Repeat Positioning Accuracy
±0.03mm/m
Max. Acceleration
0.4G - 0.5g
Max. Rotation Speed
25r/min - 45r/min
Max. Travelling Speed
50m/min
Dimension
30524*5500*3400mm
ADVANTAGES OF ACME LASER CUTTING MACHINE
OSPRI Autofocus Laser Cutting Head
The intelligent bevel cutting head can rotate 360° infinitely and swing ±45°, and can perform three-dimensional cutting.
Cutting efficiency increased By 20%.
50% Longer cutting life.
Three-chuck True Zero Tailing Wast Cutting Technology
Maximum load-bearing capacity of single tube, super-long tube cutting, and real zero tailing. Improve material utilization and save costs.
Innovative Intelligent Three-chuck Design
Three-chuck linkage, punching at both ends, intersecting line cutting
Maximum load-bearing capacity of single tube, super-Long tube cutting.
Processing Heavy Pipe
The maximum processing pipe weight is 1200kg, pipe length is 1200mm, the diameter range is 30-370mm. Cutting angle steel, channel steel, I-beam and other profiles.
cutting samples
