HIGH POWER LASER SHEET CUTTING MACHINE
Technical Parameter
Model
LP-6020D
Model
LP-6020D
Processing Range (L*W)
6000*2000mm
Laser Power
1000-30000W (12 / 15 / 20 / 30 KW)
Laser Power
1000-6000W (1KW to 6KW)
X Y Axis Positioning Accuracy
±0.03mm/m
Workbench Maximum Load
4500kg
Maximum G Speed(acceleration)
0.85G
X Y Axis Repeat Positioning Accuracy
±0.02mm/m
Dimensions
15463*4356*3000mm
Maximum Speed
92m/min
ADVANTAGES OF ACME LASER CUTTING MACHINE
High Power Laser Sheet Cutting Machine
High Power Laser Sheet Cutting Machine
OSPRI High Power Cutting Head
It can change its laser spot to proper size and shape according to cutting materials and thickness. A variety of cutting processes have been developed for 20-50mm sheet cutting.
Up and Down Exchange Platform
Laser cutting machine has up and down exchange table. Fast exchange speed. Save loading and unloading time. Improve processing efficiency.
Cast Aluminum/Welded Beams
Made of High-Quality Materials. Good Dynamic performance. Smooth Movement. Good Toughness. Corrosion Resistance. Oxidation Resistance.
Cypcut Cnc Software
- Micro-connection cutting
- Active obstacle avoidance
- Real-time monitoring of core components
- Active reminder of machine maintenance
Application industry
High power laser cutting machine up to 30,000w (30Kw) of laser power!
An ideal choice for cutting thick plates.
Suitable for use in the manufacturing of agricultural machinery, textile machinery, food processing machinery and engineering machinery.

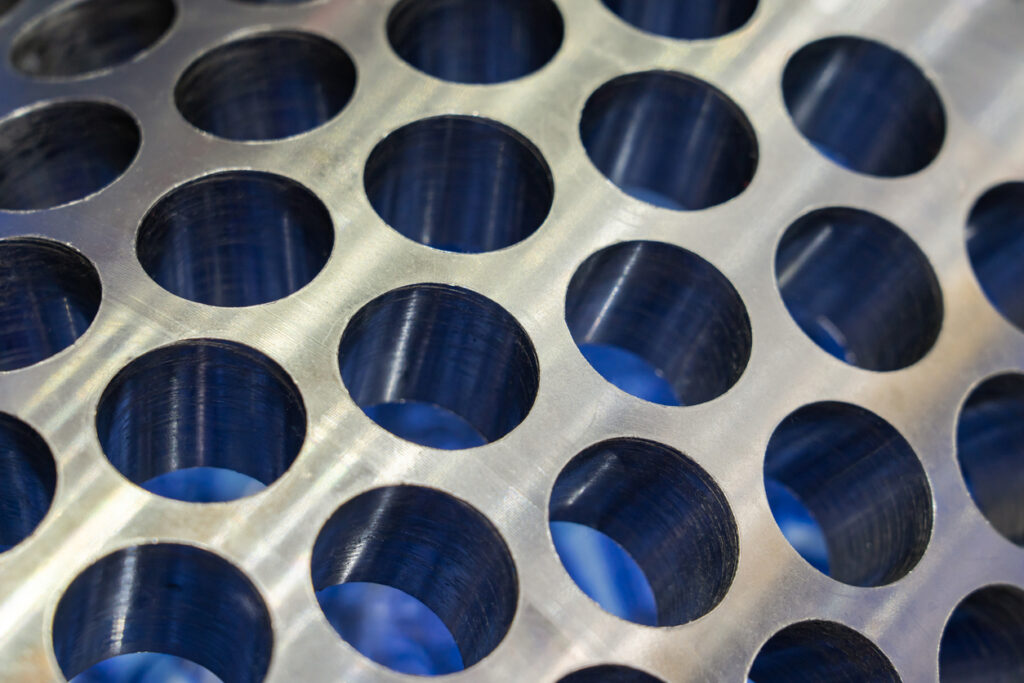

Cutting Samples
